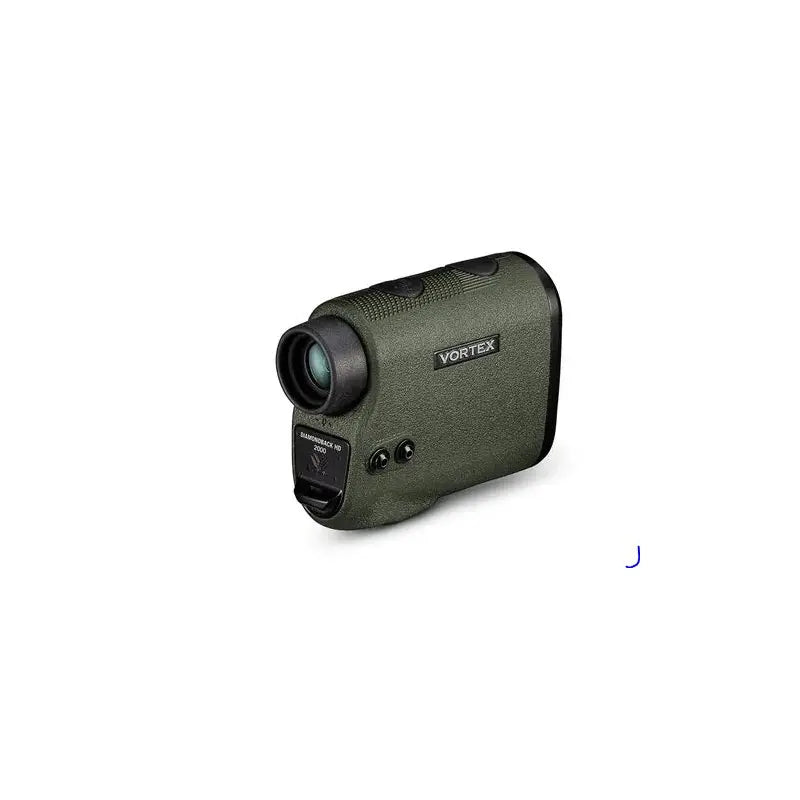

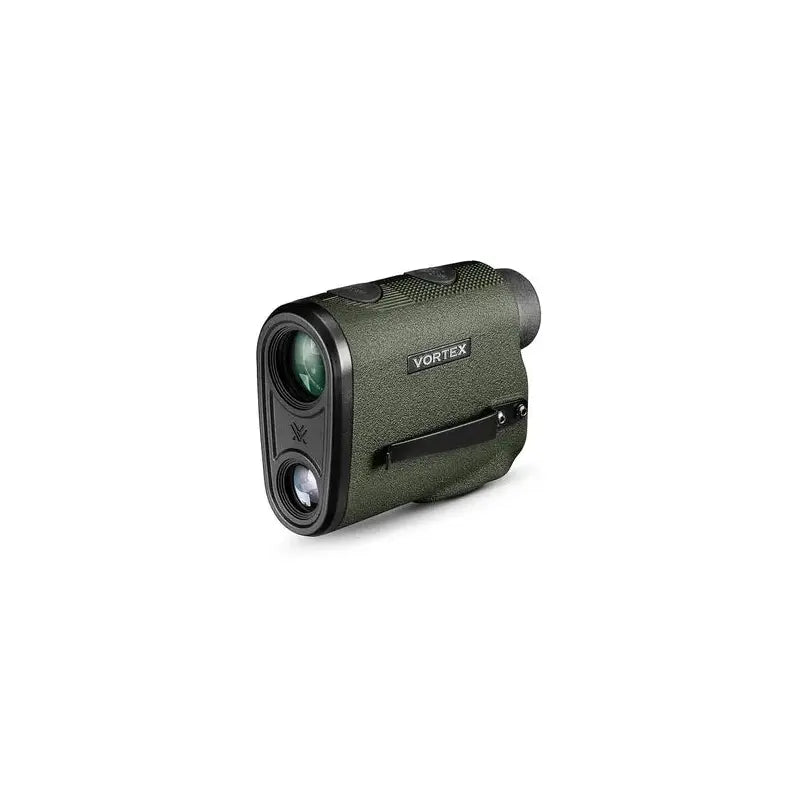

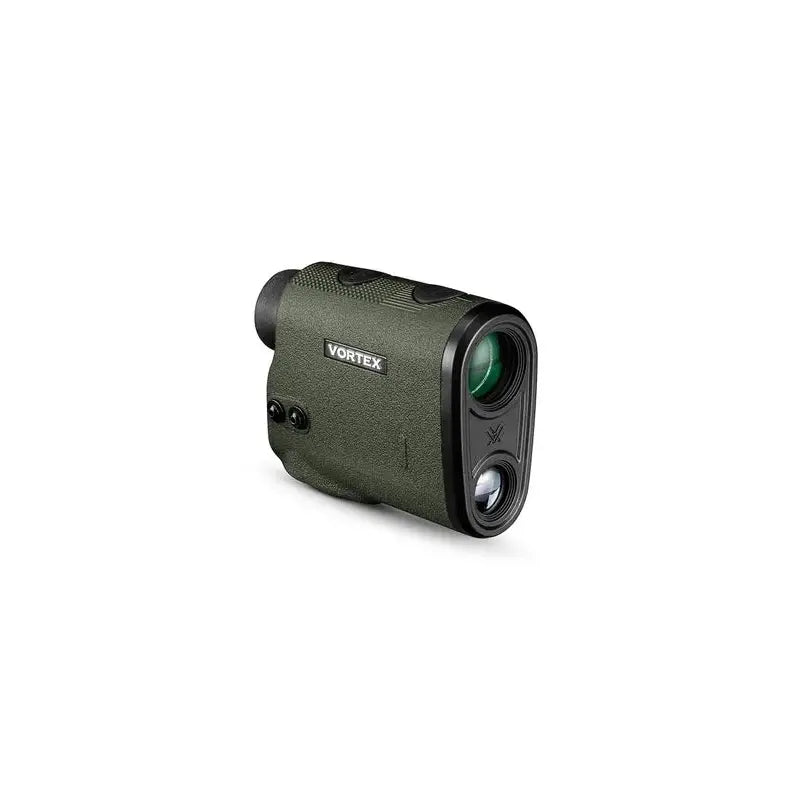

The Diamondback™ HD 2000 Laser Rangefinder offers hunters a maximum range of 2,000 yards and 1,400 yards of game. The 7x magnification helps you see further and the HD optical system allows you to separate the landscape and stay focused on your goal.
The red OLED display remains clear in low-light conditions, and to suit any hunting environment, the Diamondback™ HD 2000 has two target modes (Normal and Last), two tracking modes (HCD and LOS), and is tripod adaptable .
Range Reflective (yards) 2000 yds
Range Tree (yards) 1800 yds
Range Deer (yards) 1400 yds
Accuracy + / - 1 yard @100 yards
Max Angle Reading + / - 60 degrees
Magnification 7x
Objective Lens Diameter 24mm
Linear Field of View 335 feet/1000 yards
Angular Field of View 6.4 degrees
Length 4.1 inches
Width 1.8 inches
Weight 7.6 oz
KEY FEATURES
HD Optical System Optimized with selected glass elements to deliver exceptional resolution, reduce chromatic aberration and provide exceptional color fidelity, edge-to-edge sharpness and light transmission.
Red TOLED Display Optimized for low light conditions.
Increment Display Displays 0.1 yd increments up to 999.9 yards
Scan Displays Continuous distance readings while panning a landscape.
XR™ Lens Coatings Premium anti-reflection coatings on all air-to-glass surfaces provide superior light transmission for exceptional clarity and low-light performance.
Diopter Adjust the diopters. Located on the right eyepiece.
ArmorTek ® The coating is very durable and protects the external lenses from scratches, oil and dirt.
Waterproof O-ring seals make it waterproof and prevent the penetration of moisture, dust and debris.
Ranging Format Range in yards or meters.
Adaptable T ripod Compatible with a tripod adapter, allowing use on a tripod or car window mount.
Ranging Format Range in yards or meters.
Lattice
HCD CORRECTED SHOOT-TO RANGE
The Diamondback HD 2000 uses Horizontal Component Distance (HCD) angle-compensated scope technology to provide bow and rifle shooters with the critical distance data needed to make accurate shots.
